Sips In-App JSON

To search in the page use Ctrl+F on your keyboard

The last interfaceVersion is 3.0

It is advised to read the following documents before

  • Optional

    Good practices

    Functional, technical documentation and user guides to help you to integrate Mercanet online payment solution.

    Open in new tab Good practices

Mercanet is a secure multi-channel e-commerce payment solution that complies with the PCI DSS standard. It allows you to accept and manage payment transactions by taking into account business rules related to your activity (payment upon shipping, deferred payment, recurring payment, payment in instalments, etc.).

The purpose of this document is to explain the implementation steps of the solution up to live operations.

This document is intended for merchants wishing to subscribe to the Mercanet offer and integrate payment as part of their mobile application. The In-App connector is based on JSON exchanges via the REST protocol, in machine-to-machine mode.

It is an implementation guide for your technical team.

To get an overview of the Mercanet solution, we advise you to consult the following documents:

Knowledge of standards related to web programming languages used today, such as Java, PHP or .Net, is necessary to develop a client that can connect to the In-App gateway.

Furthermore, knowledge of standards related to mobile programming languages used today is necessary to integrate our SDK to your Android and iOS mobile application.

Note: dedicated documents are available in order to describe In-App Android and iOS SDK integration.
Note: all code sections in this document are provided as samples, you will need to adapt them to your website for them to be fully operable.

Upon your subscription, BNP Paribas provides a secret key on the Mercanet Téléchargement extranet that will allow you to secure exchanges between your website and the Mercanet server.

You are responsible for looking after this key and should take all measures to:

  • restrict access to the key
  • safeguard it by encrypting it
  • never copy it onto a non-secure disc or device
  • never send it (via e-mail or regular mail) in a non-secure method

A secret key compromised (and used by a malicious third party) might disrupt the regular operation of your shop and might in particular generate unauthorised sales or cash transactions (e.g. refunds).

IMPORTANT: in the event that a secret key is compromised, you are required to ask as quickly as possible for its revocation then for its renewal via the Mercanet Téléchargement extranet (please refer to the « Key management » section in the relevant documentation).

The very same secret key is used on the various Paypage, Office (M2M), In-App and Walletpage connectors.

IMPORTANT: a secret key is associated with a version. After getting a new secret key, you must modify your request and populate the keyVersion field with the new version, otherwise you will get an answer code 34 (suspected fraud).

Worldline has lowered PCI-DSS constraints on your side because encrypted card data passes between your mobile applications and the Mercanet server.

Indeed, card data never flows through your server and this must never be the case.

Therefore, your application does not have to comply with the PCI-DSS standard; it simply has to comply with the PCI-DSS best practices described at this address:

https://www.pcisecuritystandards.org/document_library?association=PA-DSS

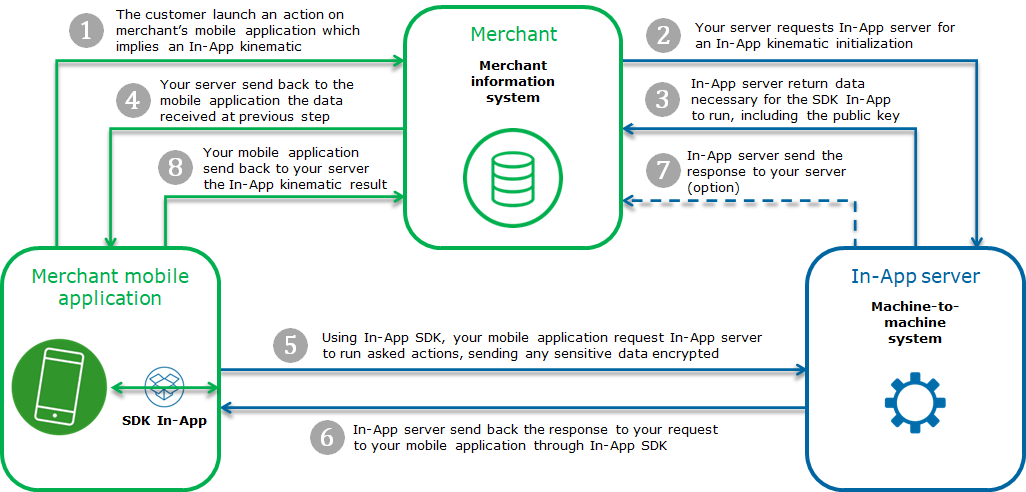

The general principle of how In-App works is the following:


image describing the general principle of operation of the connector

1) The client triggers an action on the merchant mobile application requiring In-App kinematics. 2) Your server makes an initialization request to the In-App server. 3) The In-App server sends back the data needed for the in-App SDK to work, including the public key. 4) Your server sends the data retrieved in the previous step back to the mobile application. 5) Via the In-App SDK, your mobile application requests the In-App server to perform the desired actions by passing any encrypted sensitive data. 6) The In-App server returns the response to your request to your mobile application via the In-App SDK. 7) The In-App server sends the response to your server (optional). 8) Your mobile application returns the processing result to your server. Translated with www.DeepL.com/Translator (free version).

Note: Several kinematics are possible, some of which asks several interactions between your mobile application and the In-App server or with external systems (for example: a redirection to the ACS for a 3-D Secure authentication). The different kinematics are described later in this document.
Attention: you are responsible for preventing "man-in-the-middle" attacks between flows 1 and 4 (for more information on this please visit https://en.wikipedia.org/wiki/Man-in-the-middle_attack).

In order to register your shop as live, you are required to complete the registration form sent by BNP Paribas and send the form back to the latter.

When filling in the form, you must appoint an administrator contact and a technician contact so that BNP Paribas can send you the information needed to launch your shop.

BNP Paribas will then register your shop and e-mail you your merchant ID, together with your IDs and passwords for Merchant Extranet (to retrieve the secret key and perform cash management).

Note: For Merchant Extranet, the connexion information are sent to the administrator contact.

Registering the shop is not needed to start integrating the connector and testing the connection on the customer test environment. It is possible to defer requesting shop registration until you perform live operation tests.

As mentioned above, the first step of a In-App kinematic consists in initializing this kinematic. This initialization is a call to a REST (JSON) web service located on the Mercanet payment platform.

A request is made up of generic fields and container fields.

A container is a structure used to functionally group data.

If the field is a container, this specification is indicated in the comment column which refers you to the dedicated chapter detailing the contents of all the fields of this type.

All of the necessary fields must be provided for each request.

Attention: please remember you need to indicate in your message header that the data to be processed is of JSON type. To do this, you need to specify the 'Content-Type: application/json' header in your JSON message. Otherwise you might receive an error message similar to the following:
<!DOCTYPE HTML PUBLIC "-//IETF//DTD HTML 2.0//EN">
<html>
    <head>
        <title>415 Unsupported Media Type</title>
    </head>
    <body>
        <h1>Unsupported Media Type</h1>
        <p>The supplied request data is not in a format
acceptable for processing by this resource.</p>
    </body>
</html>
Note: in the responses, depending on the processing result, some fields can be null, empty or not returned.

The request is structured in line with the JSON format:

{“<nom du champ>” : ”<nom de la valeur>”, “<nom du champ>” : “<nom de la valeur>”, “nom du champ” : “Nom de la valeur” etc., “seal” : “valeur de seal”}

Sample payment request with an amount of 10 euros:

{"amount" : "1000","currencyCode" : "978","interfaceVersion" : "IR_MB_2.38","keyVersion" :
"1","merchantId" : "012345678911111","paymentMeanBrand" : "VISA","paymentPattern" :
"ONE_SHOT","sdkOperationName" : "CARDORDER","transactionReference" : "STHTSH4418152014","seal" :
"05f6b5cc0b2a31eb3a976f060a3824874cc7bf01c081f17956f125f586eb27ba"}

The syntax used to create a JSON list complies with the standard. Here is a summary of this structure for the two main list types: simple field lists (e.g. character strings) and object lists.

A field can have several values:

…,"nom du champ" : ["valeur1","valeur2"],…

Sample paymentMeanBrandList field with VISA and MASTERCARD as values:

…,"paymentMeanBrandList" : ["VISA","MASTERCARD"],…

If a field contains a list of complex objects, its representation is structured using the following format:

…,“nom du champ” : [{“nom du sous-champ1”:”valeur1”,“nom du sous-champ2”:”valeur2”},{“nom du souschamp1”:”valeur3”, “nom du sous-champ2”:”valeur4”}],…

Sample payment request with a list of complex objects for the shoppingCartDetail field, containing two products, apple and mango:

{"amount" : "1000","currencyCode" : "978","interfaceVersion" : "IR_MB_2.38","keyVersion" :
"1","merchantId" : "012345678911111","paymentMeanBrand" : "VISA","paymentPattern" :
"ONE_SHOT","sdkOperationName" : "CARDORDER","shoppingCartDetail" : {"shoppingCartItemList" : [{"productCode" :
"123","productName" : "apple"},{"productCode" : "456","productName" : "mango"}],"shoppingCartTotalAmount" :
"1000"},"transactionReference" : "6549854FCEX12867","seal" :
"17cb94b79102b492eccd335cb8e5633e243f12ce116a496b45c93d7b6908bb0b"}

Some fields of the payment request are required:

  • Only when using certain means of payment. Please read the dedicated means of payment guide to know the mandatory fields.
  • Depending on your shop configuration. Please read the Functionality set-up guide to find out the mandatory fields.
  • Only in certain use cases (e.g. recurring payment). Please read the Functionality set-up guide to know the mandatory fields.

Those fields are marked as "conditional".

The request includes the transaction parameters and is sent by your server. Theoretically, a third party can intercept the request and modify its content before the data reaches the payment server.

Therefore it is necessary to strengthen security so as to ensure the integrity of the parameters of the transaction sent. The Mercanet solution meets this challenge by exchanging signatures. An effective signature control comprises two elements:

  • The integrity of the request and response messages (and therefore the absence of modifications during the exchange).
  • The issuer and recipient authentication, as they share the same secret key.
IMPORTANT: if your secret key is compromised, or if you suspect this might be the case, you should renew it by connecting on Mercanet Téléchargement.

The request is secured by calculating the hash value in line with the transaction parameters. Then, the secret key is added to it. All character strings are converted to UTF-8 before being hashed.

The hashing algorithm generates an irreversible result. When such a message is received, the recipient needs to recalculate the hash value and compare it with the one received. Any difference indicates that the data exchanged was falsified, or that the recipient and the issuer do not share the same secret key.

The result must be sent in hexadecimal format in the data element named Seal.

The value of the Seal data element is computed as follows:

  • Concatenation of data field values in the alphabetical order of field names (in accordance with ASCII character codes), without integrating the keyVersion and sealAlgorithm fields. Giving the field data, mentioned in the examples below.
    • as an example, a field that would be named authorMessageReference must be positioned before another field named authorisationId
  • Obtaining the UTF-8 encoding of the data from the previous result
  • HMAC with SHA256 encryption of bytes obtained with the secret key

This procedure can be summarised as follows:

HMAC-SHA256( UTF-8(sortedDataValues), UTF-8(secretKey))
Attention: by default, the seal is computed with the HMAC-SHA-256 algorithm, the use of which we strongly recommend.

For the seal to be computed with the SHA-256 algorithm, the input parameters of the request must include the sealAlgorithm field populated with the following value: “SHA-256”.

  • Sample Hmac Sha256 encoding in Php 5

    <?php

    …

    // Seal computation thanks to hash sorted data hash with merchant key

    $data_to_send= utf8_encode($data)

    $seal=hash_hmac('sha256', $data_to_send, $secretKey);

    …
    …

    ?>

    data_to_send and secretKey must use a UTF-8 character set. Please refer to the utf8_encode function for the conversion of ISO-8859-1 characters in UTF-8.

  • Sample Hmac Sha256 encoding in Java

    import java.security.InvalidKeyException;
    import java.security.NoSuchAlgorithmException;

    import javax.crypto.Mac;
    import javax.crypto.spec.SecretKeySpec;

    public class ExampleHMACSHA256 {

    /**
     * table to convert a nibble to a hex char.
     */
    static final char[] hexChar = {
       '0' , '1' , '2' , '3' ,
       '4' , '5' , '6' , '7' ,
       '8' , '9' , 'a' , 'b' ,
       'c' , 'd' , 'e' , 'f'};

    /**
     * Fast convert a byte array to a hex string
     * with possible leading zero.
     * @param b array of bytes to convert to string
     * @return hex representation, two chars per byte.
     */
    public static String encodeHexString ( byte[] b )
       {
       StringBuffer sb = new StringBuffer( b.length * 2 );
       for ( int i=0; i<b.length; i++ )
          {
          // look up high nibble char
          sb.append( hexChar [( b[i] & 0xf0 ) >>> 4] );

          // look up low nibble char
          sb.append( hexChar [b[i] & 0x0f] );
          }
       return sb.toString();
       }

    /**
     * Computes the seal
     * @param Data the parameters to cipher
     * @param secretKey the secret key to append to the parameters
     * @return hex representation of the seal, two chars per byte.
     */
    public static String computeSeal(String data, String secretKey) throws Exception
    {
      Mac hmacSHA256 = Mac.getInstance("HmacSHA256");
      SecretKeySpec keySpec = new SecretKeySpec(secretKey.getBytes(), "HmacSHA256");
      hmacSHA256.init(keySpec);

      return encodeHexString(hmacSHA256.doFinal(data.getBytes()));
    }

    /**
     * @param args
     */
    public static void main(String[] args) {
    try {
    System.out.println (computeSeal("parameters", "key"));
    } catch (Exception e) {
    e.printStackTrace();
    }
    }

    }
  • Sample Hmac Sha256 encoding in .net

    (Carried out using a simple form called "Form1" containing two text fields to enter data and txtSecretKey, and another field to display lblHEX).


    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Drawing;
    using System.Text;
    using System.Windows.Forms;
    using System.Security.Cryptography;

    namespace ExampleDotNET
    {
        public partial class Form1 : Form
        {
            public Form1()
            {
                InitializeComponent();
            }

            private void cmdGO_Click(object sender, EventArgs e)
            {
                String sChaine = data.Text;
                UTF8Encoding utf8 = new UTF8Encoding();
                Byte[] encodedBytes = utf8.GetBytes(sChaine);

                byte[] shaResult;

                HMAC hmac = new HMAC.Create("HMACSHA256");
                var key = "YourSecretKey";
                hmac.Key = utf8.GetBytes(key);
                hmac.Initialize();

                shaResult = hmac.ComputeHash(encodedBytes);

                lblHEX.Text = ByteArrayToHEX(shaResult);
            }

            private string ByteArrayToHEX(byte[] ba)
            {
                StringBuilder hex = new StringBuilder(ba.Length * 2);
                foreach (byte b in ba)
                    hex.AppendFormat("{0:x2}", b);
                return hex.ToString();
            }

        }
    }

Once you have set up your seal calculation, here is a sample request to help you verify that you find the correct seal:

{
  "amount" : "2500",
  "automaticResponseUrl" : "https://automatic-response-url.fr/",
  "captureDay" : "0",
  "captureMode" : "AUTHOR_CAPTURE",
  "currencyCode" : "978",
  "interfaceVersion" : "IR_MB_2.38",
  "keyVersion" : "1",
  "merchantId" : "011223344550000",
  "sdkOperationName" : "CARDORDER",
  "sdkVersion" : "SDK100",
  "transactionReference" : "TREFEXA2021",
  "seal" : "c4372c03a0d678fcf5a401d6a7d8625785580d07257208b8c0dc098e0109963a"
}

For the above request, the concatenated string you must obtain is:

2500https://automatic-response-url.fr/0AUTHOR_CAPTURE978IR_MB_2.38011223344550000CARDORDERSDK100TREFEXA2021

With a HMAC-SHA-256 hash algorithm and the following secret key:

secret123

The expected seal is:

c4372c03a0d678fcf5a401d6a7d8625785580d07257208b8c0dc098e0109963a

With In-App connector, you are able to launch several kind of payment kinematic according to sdkOperationName field, filled in orderInitialize service request:

  • Card payment kinematic without holder authentication (sdkOperationName=CARDORDER)
  • Card payment kinematic with holder authentication (sdkOperationName=THREEDSECUREANDORDER)
  • Wallet payment kinematic without holder authentication (sdkOperationName=WALLETORDER)
  • Wallet payment kinematic with holder authentication (sdkOperationName=THREEDSECUREANDWALLETORDER)

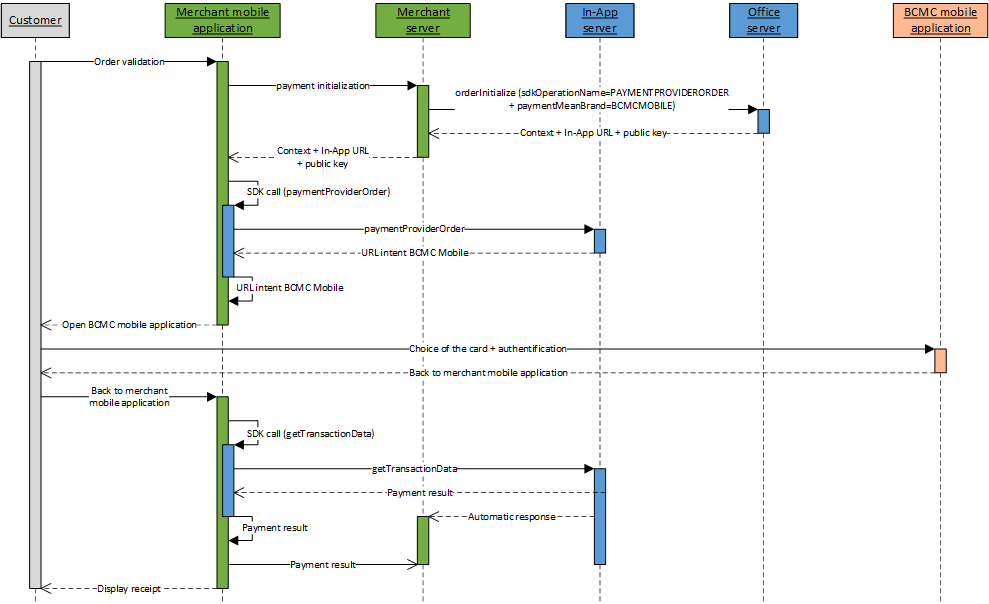

  • Externalized payment kinematic on a payment provider (sdkOperationName=PAYMENTPROVIDERORDER)

These kinematics are described hereafter.

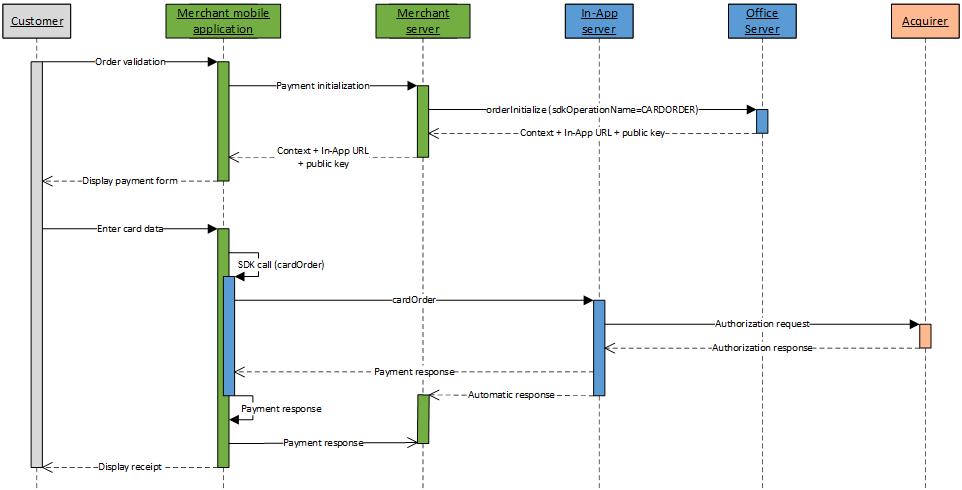

A card payment kinematic without holder authentication with In-App is done in 2 steps:

  • Initialize the payment kinematic on Mercanet server through orderInitialize service (with sdkOperationName=CARDORDER);
  • Once customer has enter his card data, perform the payment by calling the cardOrder service from your mobile application, thanks to the In-App SDK.

image too complex to be described, please contact the support

A card payment kinematic with holder authentication with In-App is done in 4 steps:

  • Initialize the payment kinematic on Mercanet server through orderInitialize service (with sdkOperationName=THREEDSECUREANDORDER);
  • Once customer has enter his card data, perform a check of the card enrollment by calling the cardCheckEnrollment service from your mobile application, thanks to the In-App SDK;
  • Redirect the customer to the ACS for authentication;
  • Perform the payment by calling the cardValidateAuthenticationAndOrder service from your mobile application, thanks to the In-App SDK.

image too complex to be described, please contact the  support

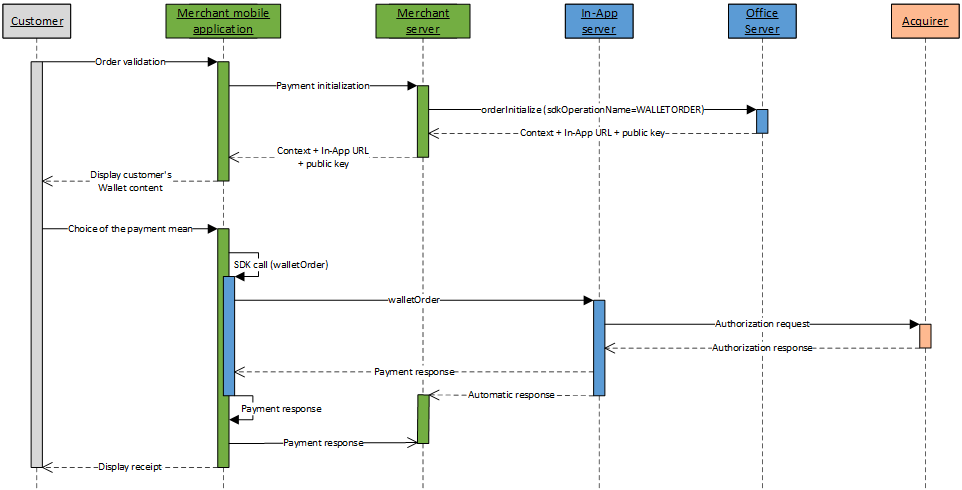

A wallet payment kinematic without holder authentication with In-App is done in 2 steps:

  • Initialize the payment kinematic on Mercanet server through orderInitialize service (with sdkOperationName=WALLETORDER);
  • Once the customer has chosen his payment mean, perform the payment by calling the walletOrder service from your mobile application, thanks to the In-App SDK.

image too complex to be described, please contact the support

A wallet payment kinematic with holder authentication with In-App is done in 4 steps:

  • Initialize the payment kinematic on Mercanet server through orderInitialize service (with sdkOperationName=THREEDSECUREANDWALLETORDER);
  • Once the customer has chosen his payment mean, perform a check of the card enrollment by calling the walletCheckEnrollment service from your mobile application, thanks to the In-App SDK;
  • Redirect the customer to the ACS for authentication;
  • Perform the payment by calling the cardValidateAuthenticationAndOrder service from your mobile application, thanks to the In-App SDK.

image too complex to be described, please contact the support

An externalized payment kinematic on a payment provider with In-App is done in 4 steps:

  • Initialize the payment kinematic on Mercanet server through orderInitialize service (with sdkOperationName=PAYMENTPROVIDERORDER);
  • Perform a call to the paymentProviderOrder service from your mobile application, thanks to the In-App SDK, to launch the payment and get the Intent URL which permits to open the payment provider mobile application;
  • Redirect the customer to the payment provider mobile application;
  • Once the customer is back on the merchant mobile application, perform a call to the getTransactionData service from your mobile application, thanks to the In-App SDK, to know the transaction status (payment in success or failure).
Note: this kinematic is available for BCMC Mobile payment mean only.

image too complex to be described, please contact the support

The request and response of the function orderInitiliaze are described on this page.

The Mercanet server checks each field received individually. The following list contains the error codes that can be returned during the verification step, as well as the solutions to be implemented.

redirectionStatusCode Description
00 Standard situation followed by the standard call process, from your mobile application, of the wished service (cardOrder, cardCheckEnrollment, walletOrder, walletCheckEnrollment or paymentProviderOrder).
03 The merchant ID or acquirer contract are not correct.
12 The transaction parameters are not correct. Check the request parameters (the error is indicated in the redirectionStatusMessage).
30 The request format is not correct (the error is indicated in the redirectionStatusMessage).
34 Security issue: for example, the calculated seal is not correct.
94 The transaction already exists.
99 Service temporarily unavailable.

4 cases are possible:

  • redirectionStatusCode = 00

This case must be followed by the call from your mobile application, of the wished service (cardOrder, cardCheckEnrollment, walletOrder, walletCheckEnrollment or paymentProviderOrder).

  • redirectionStatusCode = 03, 12, 30, 34

These error codes indicate that the request has an issue that must be resolved. The payment process must then be interrupted.

  • redirectionStatusCode = 94

The transaction reference has already been used. You must try again with another transaction reference.

  • redirectionStatusCode = 99

Payment service availability issue. You must try to resend the request. A new transaction reference should be used to avoid a 94 response code.

At the end of the payment kinematic, in addition to the response returned by Mercanet server to your mobile application through In-App SDK, you have the possibility to receive a response directly on your server. This automatic response is a HTTP(S) POST message sent to the automaticResponseUrl URL you optionally set in the request.

You must set up the system that will decode this response so you can know the payment result.

The following four data elements are defined in the responses:

Field name Comments/rules
Data Fields concatenation in the response
Encode Type of encoding used to encode the Data field
Seal Response message signature
InterfaceVersion Connector interface version

If the value of the Encode field is "base64" or "base64url", the Data field should be decoded in Base64/Base64Url to obtain the concatenated string of fields. The concatenated string is structured as follows: key1=value1|key2=value2, etc.

The seal (Seal field) of both responses is hashed with the same algorithm as the one supplied as input in the sealAlgorithm field. If no value was defined, SHA-256 is used by default.

Note: for a seal to be computed with the HMAC-SHA-256 algorithm, the input parameters of the request must include the sealAlgorithm field populated with the value “HMAC-SHA-256”.

The value of the Seal field is computed as follows:

For the HMAC-SHA algorithm:

  • use of the shared secret key to generate the HMAC variant of the message;
  • use of the Data field only (encoded if the corresponding option is selected);
  • UTF-8 encoding of the data constituting the result of the previous operation;
  • HMAC-SHA hashing of the bytes obtained.

This procedure can be summarised as follows:

HMAC-SHA256( UTF-8(Data), UTF-8(secretKey) )

For the SHA-256 algorithm (although this is the default value, this algorithm is no longer recommended):

  • concatenation of the Data field and of the secret key (encoded if the corresponding option is selected);
  • UTF-8 encoding of the data constituting the result of the previous operation;
  • SHA256 hashing of the bytes obtained.

This procedure can be summarised as follows:

SHA256( UTF-8(Data+secretKey) )

The automatic response is sent only if the automaticResponseUrl field has been sent in th payment kinematic initialization request. If this is the case, the Mercanet server sent a HTTP(S) POST response to the received URL address.

It is your responsibility to retrieve the various data from the response, to check the signature so as to ensure the integrity of the response fields and, consequently, to update your back office.

Attention: the automatic response is systematic, asynchronous and sent back through the network; it is inherently dependent on potential technical troubles on the various network elements and can be received with a more or less substantial delay, or even never be received at all. The automatic response is sent at the end of the payment. However, if an automatic response is not received, you can get the result of a payment by calling the getTransactionData method of the Office (M2M) interface, or by analysing the contents of the Transactions report. You may also search for a transaction and see its status using Mercanet Back Office.
Choose response format : POST or JSON

From the interfaceVersion HP_3.0 Sips sends you the concatenated string of the response (Data field) in 2 distinct formats to choose :

The POST format

This POST format has the following structure : key1=value1|key2=value2…

POST response example with "pipe" separator between the data

captureDay=0|captureMode=AUTHOR_CAPTURE|currencyCode=978|merchantId=039000254447216
    |orderChannel=INTERNET|responseCode=00|transactionDateTime=2022-11-14T11:21:12+01:00|transactionReference=SIM20221114112037
    |keyVersion=1|acquirerResponseCode=00|amount=1000|authorisationId=664865|guaranteeIndicator=N|panExpiryDate=202401
    |paymentMeanBrand=VISA|paymentMeanType=CARD|customerIpAddress=10.78.106.18|maskedPan=############0600|holderAuthentRelegation=N
    |holderAuthentStatus=NOT_PARTICIPATING|tokenPan=490700h719850600|transactionOrigin=SIMS|paymentPattern=ONE_SHOT
    |customerMobilePhone=null|mandateAuthentMethod=null|mandateUsage=null|transactionActors=null|mandateId=null|captureLimitDate=20221114
    |dccStatus=null|dccResponseCode=null|dccAmount=null|dccCurrencyCode=null|dccExchangeRate=null|dccExchangeRateValidity=null
    |dccProvider=null|statementReference=null|panEntryMode=MANUAL|walletType=null|holderAuthentMethod=NO_AUTHENT_METHOD
    |holderAuthentProgram=3DS_V2|paymentMeanId=null|instalmentNumber=null|instalmentDatesList=null|instalmentTransactionReferencesList=null
    |instalmentAmountsList=null|settlementMode=null|mandateCertificationType=null|valueDate=null|creditorId=null
    |acquirerResponseIdentifier=null|acquirerResponseMessage=null|paymentMeanTradingName=null|additionalAuthorisationNumber=null
    |issuerWalletInformation=null|s10TransactionId=6|s10TransactionIdDate=20221114|preAuthenticationColor=null|preAuthenticationInfo=null
    |preAuthenticationProfile=null|preAuthenticationThreshold=null|preAuthenticationValue=null|invoiceReference=null|s10transactionIdsList=null
    |cardProductCode=F|cardProductName=VISA CLASSIC|cardProductProfile=C|issuerCode=00000|issuerCountryCode=GRC|acquirerNativeResponseCode=00
    |settlementModeComplement=null|preAuthorisationProfile=null|preAuthorisationProfileValue=null
    |preAuthorisationRuleResultList=[{"ruleCode":"VI","ruleType":"NG","ruleWeight":"I","ruleSetting":"S","ruleResultIndicator":"0","ruleDetailedInfo":"TRANS=1:3;CUMUL=24999:200000"},{"ruleCode":"RCode","ruleType":"RType","ruleWeight":"RWeight","ruleSetting":"RSetting","ruleResultIndicator":"RIndicator","ruleDetailedInfo":"DetailedInfo"}]
    |preAuthenticationProfileValue=null|preAuthenticationRuleResultList=null|paymentMeanBrandSelectionStatus=NOT_APPLICABLE|transactionPlatform=PROD
    |avsAddressResponseCode=null|avsPostcodeResponseCode=null|customerCompanyName=null|customerBusinessName=null|customerLegalId=null
    |customerPositionOccupied=null|paymentAttemptNumber=1|holderContactEmail=null|installmentIntermediateServiceProviderOperationIdsList=null
    |holderAuthentType=null|acquirerContractNumber=3863090010|secureReference=null|authentExemptionReasonList=null
    |paymentAccountReference=a667b63d8bec4fb980106497c53e4|schemeTransactionIdentifier=b4e683c1a6ff4a09a0415116a0a25b401d38c19d24e643078d
    |guaranteeLimitDateTime=null|paymentMeanDataProvider=null|virtualCardIndicator=N|cardProductUsageLabel=CREDIT|authorisationTypeLabel=TRANSACTION DE PAIEMENT
    |authorMessageReference=272612|acceptanceSystemApplicationId=142000000001|challengeMode3DS=null|issuingCountryCode=GRC|abortedProcessingStep=null|abortedProcessingLocation=null

The JSON format

JSON format has the following structure : { "key1" : "value1", "key2" : "value2", …}

Note: JSON format easily displays a list or a collection of objects with the following structure : "clientList" : [ { "name" : "name1", "surname" : "surname1",… }, { "name" : "name2", "surname" : "surname2",… } ]

JSON response example


    {
  		"keyVersion": 1, "acquirerResponseCode": "00", "acquirerResponseDescription": "Transaction approved or processed successfully",
  		"amount": 1000, "authorisationId": "858191", "captureDay": 0, "captureMode": "AUTHOR_CAPTURE", "cardScheme": "VISA",
  		"chargeAmount": 0, "currencyCode": "978", "customerIpAddress": "10.78.106.18", "guaranteeIndicator": "N",
  		"holderAuthentRelegation": "N", "holderAuthentStatus": "NOT_PARTICIPATING", "maskedPan": "############0600",
  		"merchantId": "039000254447216", "orderAmount": 1000, "orderChannel": "INTERNET", "panExpiryDate": "202401",
  		"paymentMeanBrand": "VISA", "paymentPattern": "ONE_SHOT", "responseCode": "00", "responseDescription": "Process succeeded",
  		"tokenPan": "490700h719850600", "transactionDateTime": "2022-11-14.11:19:39+0100", "transactionOrigin": "SIMS",
  		"transactionReference": "SIM20221114111757", "captureLimitDate": "20221114", "paymentMeanType": "CARD", "panEntryMode": "MANUAL",
  		"holderAuthentMethod": "NO_AUTHENT_METHOD", "holderAuthentProgram": "3DS_V2", "s10TransactionId": "5", "s10TransactionIdDate": "20221114",
  		"cardProductCode": "F", "cardProductName": "VISA CLASSIC", "cardProductProfile": "C", "issuerCode": "00000", "issuerCountryCode": "GRC",
  		"acquirerNativeResponseCode": "00", "sealAlgorithm": "sha256", "paymentMeanBrandSelectionStatus": "NOT_APPLICABLE",
  		"transactionPlatform": "PROD", "paymentAttemptNumber": 1, "acquirerContractNumber": "3863090010",
  		"schemeTransactionIdentifier": "79e70b862e5942ff86f31951235959a16f45f41f797f48129e",
  		"paymentAccountReference": "945dbb3e0b984bfc896a04c5bc273", "virtualCardIndicator": "N", "cardProductUsageLabel": "CREDIT",
  		"authorisationTypeLabel": "TRANSACTION DE PAIEMENT", "authorMessageReference": "179263", "acceptanceSystemApplicationId": "142000000001",
  		"issuingCountryCode": "GRC", "threeDLiabilityShift": "N", "threeDStatusCode": "NOT_PARTICIPATING", "threeDRelegationCode": "N",
  		"preAuthorisationRuleResultList":[
  		    {"ruleCode":"VI","ruleType":"NG","ruleWeight":"I","ruleSetting":"S","ruleResultIndicator":"0","ruleDetailedInfo":"TRANS=1:3;CUMUL=24999:200000"},
  		    {"ruleCode":"RCode","ruleType":"RType","ruleWeight":"RWeight","ruleSetting":"RSetting","ruleResultIndicator":"RIndicator","ruleDetailedInfo":"DetailedInfo"}
  		]
	}


Default behaviour since the interfaceVersion HP_3.0

Format of the automatic response is determined by the connector that was used during HTTPS exchanges between your website and Sips servers

Tip: Here is a summary table of the mechanic between InterfaceVersion IR_MB_3.x / Connector called / Response Format
Interface Version Connector Response Format
IR_MB_3.x JSON JSON (JS_3.x)

Choose response versions from the payment request

If you want to override this default behavior it is possible to fill in from the payment request the exact version of the automatic response that you use.

The payment request field which allows to fill in the automatic response version is interfaceVersionAutomaticResponse

Attention: If version interfaceVersionAutomaticResponse entered in the request is incorrect, then the payment initialization request fails (error code 30).

Below is a list of the most common issues that block the receipt of automatic responses. Please make sure you have checked them before you call the technical support:

  • Make sure the automatic response URL is provided in the request and is valid. To do this, simply copy and paste it into the address bar of your browser.
  • The supplied URL must be accessible from the outside, i.e the Internet. Access control mechanisms (login/password or IP address filter) or a firewall might block access to your server.
  • Access to response URL must be confirmed in the notifications report of your web browser.
  • If you use a non-standard port, it must be within the 80 to 9999 range to ensure compatibility with Mercanet.
  • Context parameters cannot be added to the response URL. However, some fields can still be used, e.g the orderId or returnContext fields make it possible to provide extra parameters. You may also use the sessionId field to retrieve information about your customer at the end of the payment process.

In some error cases, the Mercanet server is unable to sign the response message. This applies, for instance, to the "Unknown merchantId" error and to the situation where the secret key is unknown to Mercanet. For these particular reasons, the payment server will send a response without a signature in the Seal field.

The content of the response may vary depending on the payment outcome (successful or other), the payment mean and the configuration of your shop.

Note: depending on the transaction status and the payment mean chosen, some fields can be null, empty or not returned. Please refer to payment means documentations to know which fields are present in the response.

Automatic response content:

Field name As from version Comments
acceptanceSystemApplicationId HP_2.39
acquirerContractNumber HP_2.25
acquirerNativeResponseCode HP_2.12
acquirerResponseCode HP_2.0
acquirerResponseIdentifier HP_2.8
acquirerResponseMessage HP_2.8
additionalAuthorisationNumber HP_2.8
amount HP_1.0 Same as request
authentExemptionReasonList HP_2.28
authorisationId HP_1.0
authorisationTypeLabel HP_2.39
authorMessageReference HP_2.39
avsAddressResponseCode HP_2.17
avsPostcodeResponseCode HP_2.17
captureDay HP_1.0 Request field which may be overridden by Mercanet.
captureLimitDate HP_2.3
captureMode HP_1.0 Request field which may be overridden by Mercanet.
cardCSCResultCode HP_2.0
cardProductCode HP_2.12
cardProductName HP_2.12
cardProductProfile HP_2.12
cardProductUsageLabel HP_2.39
complementaryCode HP_1.0
complementaryInfo HP_2.0
creditorId HP_2.7
currencyCode HP_1.0 Same as request
customerBusinessName HP_2.17
customerCompanyName HP_2.17
customerEmail HP_2.0 Same as request
customerId HP_2.0 Same as request
customerIpAddress HP_2.0
customerLegalId HP_2.17
customerMobilePhone HP_2.1 Same as request
customerPositionOccupied HP_2.17
dccAmount HP_2.3
dccCurrencyCode HP_2.3
dccExchangeRate HP_2.3
dccExchangeRateValidity HP_2.3
dccProvider HP_2.3
dccStatus HP_2.3
dccResponseCode HP_2.3
dueDate HP_2.3
guaranteeIndicator HP_2.0
hashPan1 HP_2.0
hashPan2 HP_2.0
holderAuthentMethod HP_2.4
holderAuthentProgram HP_2.5
holderAuthentRelegation HP_2.0
holderContactEmail HP_2.20
holderAuthentStatus HP_2.0
holderAuthentType HP_2.24
instalmentAmountsList HP_2.6
instalmentDatesList HP_2.6
instalmentNumber HP_2.6
instalmentTransactionReferencesList HP_2.6
interfaceVersion HP_1.0
intermediateServiceProviderOperationId HP_2.23
invoiceReference HP_2.10
issuerCode HP_2.12
issuerCountryCode HP_2.12
issuerEnrollementIndicator HP_2.0
issuerWalletInformation HP_2.9
issuingCountryCode HP_2.44
keyVersion HP_1.0 Same as request
mandateAuthentMethod HP_2.2
mandateCertificationType HP_2.7
mandateId HP_2.3
mandateUsage HP_2.2
maskedPan HP_1.0
merchantId HP_1.0 Same as request
merchantSessionId HP_2.0 Same as request
merchantTransactionDateTime HP_2.0 Same as request
merchantWalletId HP_2.0 Same as request
orderChannel HP_2.0 Same as request
orderId HP_1.0 Same as request
panEntryMode HP_2.4
panExpiryDate HP_2.0
paymentAccountReference HP_2.28
paymentAttemptNumber HP_2.18
paymentMeanBrand HP_1.0
paymentMeanBrandSelectionStatus HP_2.14
paymentMeanData HP_2.2
paymentMeanId HP_2.6
paymentMeanTradingName HP_2.8
paymentMeanType HP_1.0
paymentPattern HP_2.0 Same as request
preAuthenticationColor HP_2.10
preAuthenticationInfo HP_2.10
preAuthenticationProfile HP_2.10
preAuthenticationProfileValue HP_2.14
preAuthenticationRuleResultList HP_2.14

List of ruleResult objects.

Please see below for its content and format.

preAuthenticationThreshold HP_2.10
preAuthenticationValue HP_2.10
preAuthorisationProfile HP_2.14
preAuthorisationProfileValue HP_2.14
preAuthorisationRuleResultList HP_2.14

List of ruleResult objects.

Please see below for its content and format.

responseCode HP_1.0
returnContext HP_1.0 Same as request
s10TransactionId HP_2.9
s10TransactionIdDate HP_2.9
s10transactionIdsList HP_2.11
schemeTransactionIdentifier HP_2.28
scoreColor HP_2.0
scoreInfo HP_2.0
scoreProfile HP_2.0
scoreThreshold HP_2.0
scoreValue HP_2.0
secureReference HP_2.26
settlementMode HP_2.7
settlementModeComplement HP_2.13
statementReference HP_2.4
tokenPan HP_2.0
transactionActors HP_2.2 Same as request
transactionDateTime HP_1.0
transactionOrigin HP_2.0 Same as request
transactionPlatform HP_2.16 For future use (for now, its value is systematically set to ‘PROD’).
transactionReference HP_1.0
virtualCardIndicator HP_2.36
walletType HP_2.4

ruleResult content:

Field name As of version Comments
ruleCode HP_2.14
ruleType HP_2.14
ruleWeight HP_2.14
ruleSetting HP_2.14
ruleResultIndicator HP_2.14
ruleDetailedInfo HP_2.14

The syntax of a complex objects list in the automatic response is defined as follow:

...|amount=1000|currencyCode=978|objectNameList=[{"field1":"value1a",
"field2":"value2a","field3":"value3a"…},{"field1":"value1b",
"field2":"value2b","field3":"value3b"}…]|transactionReference=1452687287828|...
  • The content of the list is in square brackets [ ];
  • Each entry of the list is in curly brackets { };
  • Each field is represented as "fieldName" = "fieldValue";
  • Please note that the name and the value of the field are both in double quotes "";
  • Pairs of adjacent names/values are separated by a comma.

Sample with the preAuthorisationRuleResultList field:

...|amount=1000|currencyCode=978|preAuthorisationRuleResultList=[
{”ruleCode”:"SC",”ruleType”:"NG",”ruleWeight”:"I",”ruleSetting”:"S",
”ruleResultIndicator”:"0",“ruleDetailedInfo”:"TRANS=1:5;
CUMUL=1000:99999900"},{”ruleCode”:"GC",”ruleType”:"NG",”ruleWeight”:
"D",”ruleSetting”:"N",”ruleResultIndicator”:"0",“ruleDetailedInfo”:
""},{”ruleCode”:"CR",”ruleType”:"NG",”ruleWeight”:"D",”ruleSetting”
:"S",”ruleResultIndicator”:"N",“ruleDetailedInfo”:"CARD_COUNTRY=USA"}]
|transactionReference=1452687287828|...

Once the payment kinematic ended, you must analyse the response to know the payment result. This response is furnished to your mobile application in return of the payment function called, as well as to the automatic response URL if you filled it in the initialization request.

If you carry out the authentication steps by means of an electronic seal, you should make sure the seal you received actually matches the seal you recomputed using the response fields.

Attention: In case the seal you received does not match the seal you recomputed, the transaction status is considered unknown, please leave the transaction as it is, contact the support and do not re-execute the transaction in any automated way.
Status Response fields Actions to be carried out
Payment accepted
responseCode = 00
acquirerResponseCode = 00
garanteeIndicator = Y, N, U, empty
You can deliver the order according to the guarantee level of your choosing (garanteeIndicator field).
Mercanet fraud refusal
Go-No-Go
responseCode = 05
complementaryCode = XX
preAuthorisationRuleResultList
The payment has been refused by the Mercanet fraud engine that you configured.
Do not deliver the goods.
Analyse in detail the fraud rules executed by Mercanet to know the reason for the refusal (preAuthorisationRuleResultList field).
Mercanet fraud refusal
Business Score
responseCode = 05
scoreColor = RED, BLACK
scoreValue = X (transaction score)
scoreThreshold = X,Y (orange threshold, green threshold)
The payment has been refused by the Mercanet fraud engine that you configured.
Do not deliver the goods.
Analyse in detail the fraud rules executed by Mercanet to know the reason for the refusal (preAuthorisationRuleResultList field).
Mercanet fraud warning
Business Score
responseCode = 05
scoreColor = ORANGE
scoreValue = X (transaction score)
scoreThreshold = X,Y (orange threshold, green threshold)
The acquirer has authorised the payment, but the Mercanet fraud engine issued a warning due to the rules you configured.
Analyse in detail the fraud rules executed by Mercanet to know the reason for the warning (preAuthorisationRuleResultList field).
  • If the transaction poses no risk, accept it using the acceptChallenge function.
  • If the transaction poses a risk, refuse it using the refuseChallenge function.
The acceptChallenge and refuseChallenge functions are available on the extranet and the Office (M2M) connectors.
3-D Secure refusal
responseCode = 05
holderAuthenStatus = FAILURE
Customer authentication failed. This is not necessarily due to fraud.
You can suggest to your customer to attempt the payment again with another means of payment, by generating a new request.
Banking refusal from the acquirer
responseCode = 05
acquirerResponseCode = XX
Authorisation refused for a reason not related to fraud.
You can suggest to your customer to attempt the payment again with another means of payment, by generating a new request.
Soft decline
responseCode = 05
acquirerResponseCode = A1
The payment has been refused by the acquirer because the 3-D Secure data is missing in the authorisation request.
Please try to pay again with a 3-D Secure payment process.
Fraud refusal from the acquirer
responseCode = 34
acquirerResponseCode = XX
Authorisation refused because of fraud.
Do not deliver the order.
Refusal due to a technical issue
responseCode = 90, 99
acquirerResponseCode = 90 to 98
Temporary technical issue while processing the transaction.
Please tell your customer to attempt the payment again later.

With In-App connector, you are able to launch several kind of wallet management kinematic according to sdkOperationName field, filled in walletInitialize service request:

  • Kinematic to consult a customer's wallet content (sdkOperationName=GETWALLETDATA)
  • Kinematic to add a card to a customer's wallet (sdkOperationName=ADDCARD)
  • Kinematic to delete a payment mean from a customer's wallet (sdkOperationName=DELETEPAYMENTMEAN)

These kinematics are described hereafter.

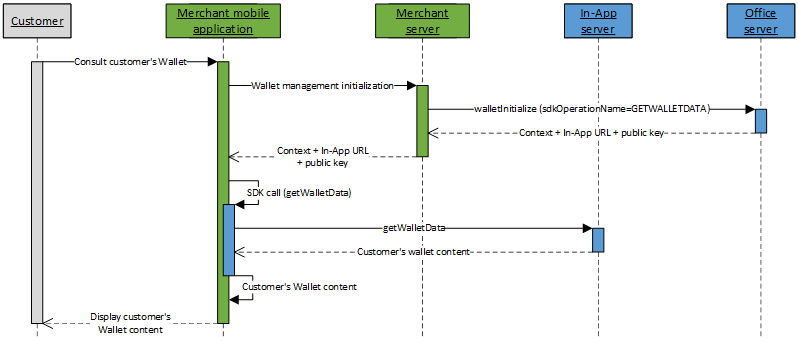

The kinematic to consult customer's Wallet with In-App is done in 2 steps:

  • Initialize the Wallet management kinematic on Mercanet server through walletInitialize service (with sdkOperationName=GETWALLETDATA);
  • Perform a call to getWalletData service from your mobile application, thanks to the In-App SDK.

Once the content of customer's Wallet collected, you can display it the your customer for him to manipulate it (add or delete a payment mean in the Wallet) or perform a payment from a registered card.


image too complex to be described, please contact the support

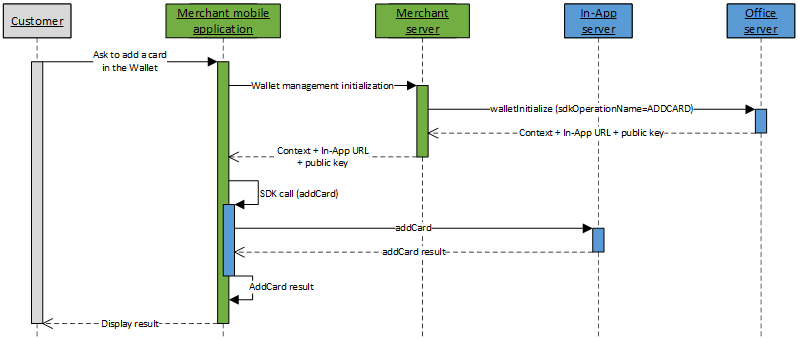

The kinematic to add a card to customer's Wallet with In-App is done in 2 steps:

  • Initialize the Wallet management kinematic on Mercanet server through walletInitialize service (with sdkOperationName=ADDCARD);
  • Perform a call to addCard service from your mobile application, thanks to the In-App SDK.

image too complex to be described, please contact the support

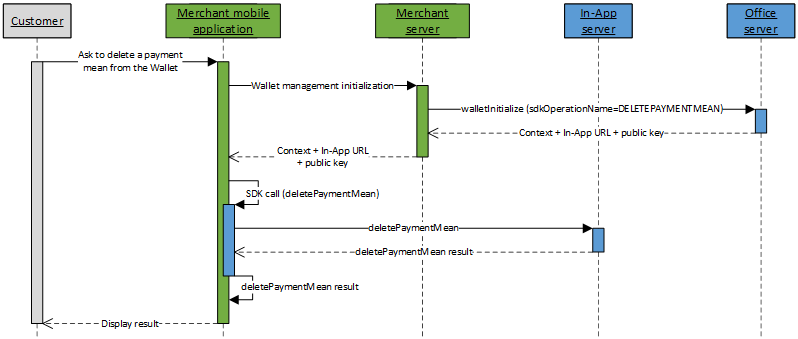

The kinematic to delete a payment mean from a customer's Wallet with via In-App is done in 2 steps:

  • Initialize the Wallet management kinematic on Mercanet server through walletInitialize service (with sdkOperationName=DELETEPAYMENTMEAN);
  • Perform a call to deletePaymentMean service from your mobile application, thanks to the In-App SDK.

image too complex to be described, please contact the support

The request and response of the function walletInitiliaze are described on this page.

The request and response of the function walletInitiliaze are described on this page.

Once the wallet management kinematic ended, you must analyse the response to know the processing result. This response is furnished to your mobile application in return of the wallet management function called.

Status Response fields Action to be carried out
Wallet management operation taken into account
walletLastActionDateTime populated with the date/time of the last action carried out on the wallet.
walletPaymentMeanDataList contains the payment methods in the wallet after-update.
To avoid requesting the card information on the next payment with the function getWalletData, store the following wallet data in your customer database:
  • paymentMeanAlias
  • paymentMeanId
  • paymentMeanBrand
  • PanExpiryDate
  • maskedPan
Wallet management operation not taken into account
walletLastActionDateTime not populated with current date/time.
walletPaymentMeanDataList contains the payment methods in the wallet.
If the wallet update is required then submit a request again

With In-App connector, you are able to launch a kinematic to consult data linked to the card of a customer with paymentMeanInfoInitialize service, with the field sdkOperationName valued to GETCARDDATA.

You may use this kinematic to get a customer card brands and propose him to choose the brand to use for the payment (for more information about regulatory "brand selection", you can consult the brand selection guide).

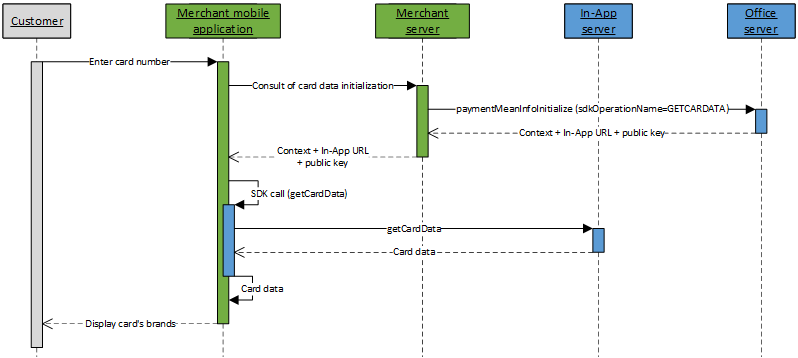

The kinematic to consult card data with In-App is done in 2 steps:

  • Initialize the kinematic to consult card data on Mercanet server through paymentMeanInfoInitialize service (with sdkOperationName=GETCARDDATA);
  • Once the card number is entered by the customer, perform a call to getCardData service from your mobile application, thanks to the In-App SDK.

Once properties of the card are known, you are able to, for example, to display to the card holder the brands of the card, and propose him to choose his preferred brand to perform the payment.


image too complex to be described, please contact the support

The request and response of the function paymentMeanInfoInitiliaze are described on this page.

The Mercanet server checks each field received individually. The following list contains the error codes that can be returned during the verification step, as well as the solutions to be implemented.

redirectionStatusCode Description
00 Standard situation followed by the standard call process, from your mobile application, of the getCardData service.
03 The merchant ID or acquirer contract are not correct.
12 The transaction parameters are not correct. Check the request parameters (the error is indicated in the redirectionStatusMessage).
30 The request format is not correct (the error is indicated in the redirectionStatusMessage).
34 Security issue: for example, the calculated seal is not correct.
40 Unauthorised function.
99 Service temporarily unavailable.

3 cases are possible:

  • redirectionStatusCode = 00

This case must be followed by the call from your mobile application, of the getCardData service.

  • redirectionStatusCode = 03, 12, 30, 34, 40

These error codes indicate that the request has an issue that must be resolved. The payment process must then be interrupted.

  • redirectionStatusCode = 99

Payment service availability issue. You must try to resend the request.

This step may be done in parallel with step 2. It consists in implementing interactions between your mobile application and the services proposed in In-App SDK, depending on the kinematics you wish to implement.

You will find details on how to implement the SDK services by following these links:

The test and integration steps can be implemented using the test environment.

The URL for the test environment is: https://office-server-mercanet.test.sips-services.com

Payment initialization service /rs-services/v2/checkoutInApp/orderInitialize
Wallet management initialization service /rs-services/v2/walletInApp/walletInitialize
Card data consultation initialization service /rs-services/v2/paymentMeanInfoInApp/paymentMeanInfoInitialize
Merchant ID 201040027570001
Key version 1
Secret key H6znJWqPj9cTRFe9eT62ulurkb_Lrksbw4PFtMSVb74

The authorisation process is simulated in the customer's test environment. This means you do not need to use real payment methods to carry out tests.

You can use the following data for your tests:

Tests cards cf page "Test cards"
Security code 123
Validity date must be greater than the current month
Attention: the test shop is configured in "transactionReference mode", without automatic generation of the transactionReference. Therefore, you must set the transactionReference field in your test requests.
Attention: since the merchantId is shared by all merchants and prospects, there might be transactionReference duplicates. This is why it is highly recommended to prefix all transactionReferences with the name of the future shop that will be used in the production environment. This also makes support easier if you call the technical support.

Once you have tested the connection from your mobile application to In-App, you can validate the connection to the production version of In-App.

Prior to this, we recommend you block public access to your mobile application to prevent customers from carrying out transactions during this validation phase.

To switch to the production server, you must change the URL in order to connect to the Mercanet production server using the merchantId, secretKey and keyVersion credentials you received during the registration phase.

URL https://office-server.mercanet.bnpparibas.net
merchantId Shop identifier received by e-mail
secretKey Secret key you can retrieve from the Mercanet Téléchargement extranet
keyVersion Secret key version retrieved from Mercanet Téléchargement (obviously 1 for the first key)
Note: forgetting one of these 4 parameters is a common mistake that systematically results in an error.

Immediately:

  • Make a transaction using a real payment card (your own, if possible). If the transaction is accepted, it will be sent to the bank to credit your merchant account and to debit the card account.
  • Check the transaction via Mercanet Back Office, using the transactionReference

The next day:

  • Make sure the transaction is in the Transactions report.
  • Check your account to make sure the operation was credited.
  • Refund the transaction via Mercanet Back Office (optional).

Two days later:

  • Check that the refund transaction is in the Operations report.
  • Make sure the debited amount has been refunded to your merchant account.

Once the validation for the transition to live operation has been carried out, make your site public so your customers can make purchases and payments.

On the same day:

  • Monitor acceptance rates (number of responseCode 00 per total number of transactions).
  • Check the nature of non-banking refusals:
    • Technical issue: responseCode 90, 97, 99
    • Fraud: responseCode 34
    • Max number of payment attempts reached: responseCode 75

The next day:

  • Check that all transactions processed (accepted and refused) are in the Transactions report.
  • Check the operations you have carried out and remittances (report option) in the Operations report.

From here you may be interested in reading

  • Recommended

    In-App - SDK Android

    Functional, technical documentation and user guides to help you to integrate Mercanet online payment solution.

    Open in new tab In-App - SDK Android
  • Recommended

    In-App - SDK iOS

    Functional, technical documentation and user guides to help you to integrate Mercanet online payment solution.

    Open in new tab In-App - SDK iOS
